TDR

For testing cables and interconnects, we offer the ideal tool: A time domain reflectometer (TDR). Time domain reflectometry/transmission can be used to test network return loss (S11), propagation loss (S21), and crosstalk.

Moreover, it can provide the impedance profile of an electrical channel. MultiLane supplies semi-automated solutions for the testing of direct-attach cables and TIAs.

High Resolution TDR, Low-cost quadruple 7 ps Rise Time Domain Reflectometry, Return Loss measurement, 4 ports per module expandable up to 32+, Low power dissipation.

Products

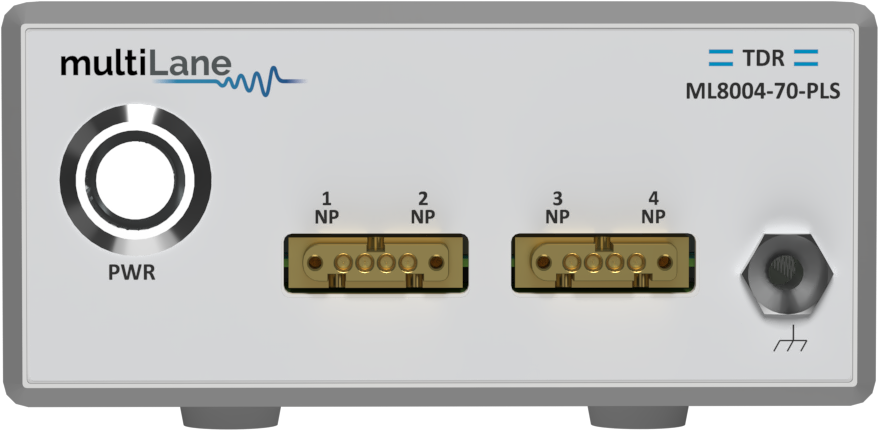

ML8004-70-PLS

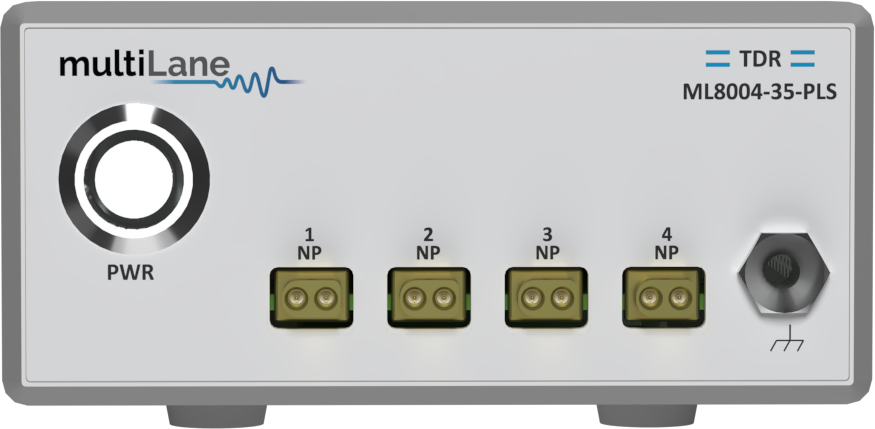

ML8004-35-PLS
