SMPM (Subminiature Push-on Sub-Micro) solderless connectors for high-density applications, offering DC-67 GHz performance with 3.5 mm pitch.
SMPM Connector Family
The MultiLane SMPM product line was developed for applications with strict design density limitations and where very high performance is a necessity.
- Solderless: Easy field installation & replacement for lower cost, fast cycle time, and high repeatability
- High Density: Single row with 2 ports of SMPM at 3.5 mm pitch
- Versatile Mating Configurations: Board-to-Board or Cable-to-Board, Edge Launch, compatible with CPW & STL traces
- High Performance: DC–67 GHz (50Ω impedance)
- High customization potential: Twinax termination, multiple PCB thicknesses, custom port count, custom cable assemblies
Foundational Products
The standard offering listed here can be customized to any configuration for particular applications. Reach out to sales@multilaneinc.com with your application requirements for consultation. Each connector has associated CAD files — available upon request — for both a model of the connector itself (STEP), and its footprint on a PCB (DXF).

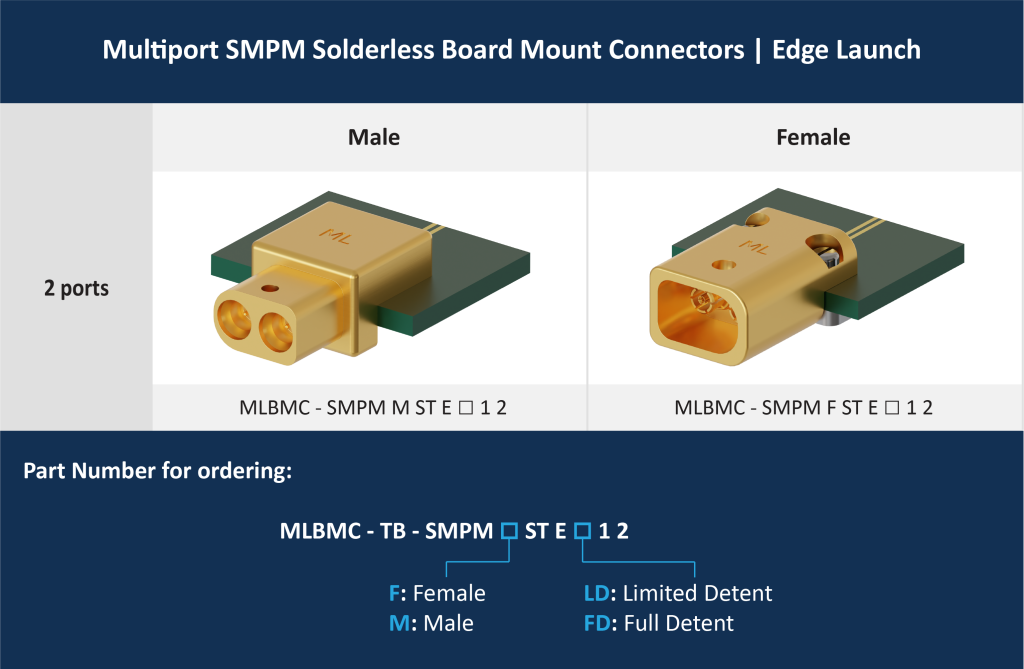

SMPM Edge Launch Connectors
- Male: Drawings & Footprints (2 ports), STEP Files (2 ports)
- Female: Drawings & Footprints (2 ports), STEP Files (2 ports)

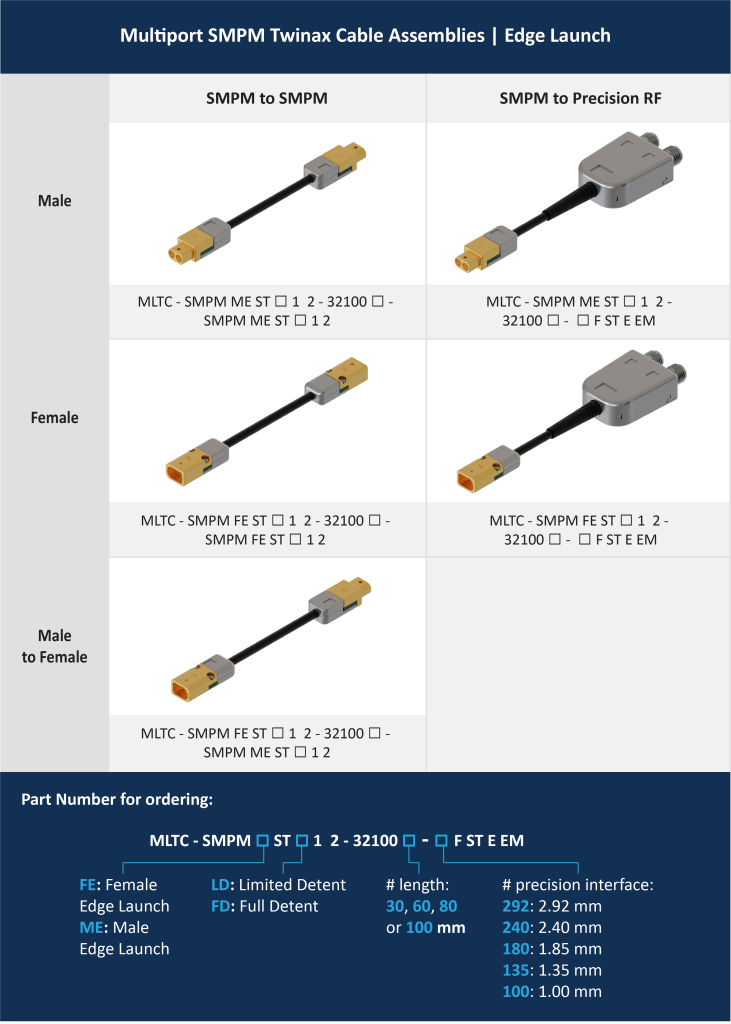

SMPM Twinax Cable Assemblies
- Female to Female — 2-port drawings, footprints, and STEP files
- Male to Female — 2-port drawings, footprints, and STEP files
- Male to Male — 2-port drawings, footprints, and STEP files
- Male to Precision RF — 2-port drawings, footprints, and STEP files
- Female to Precision RF — 2-port drawings, footprints, and STEP files

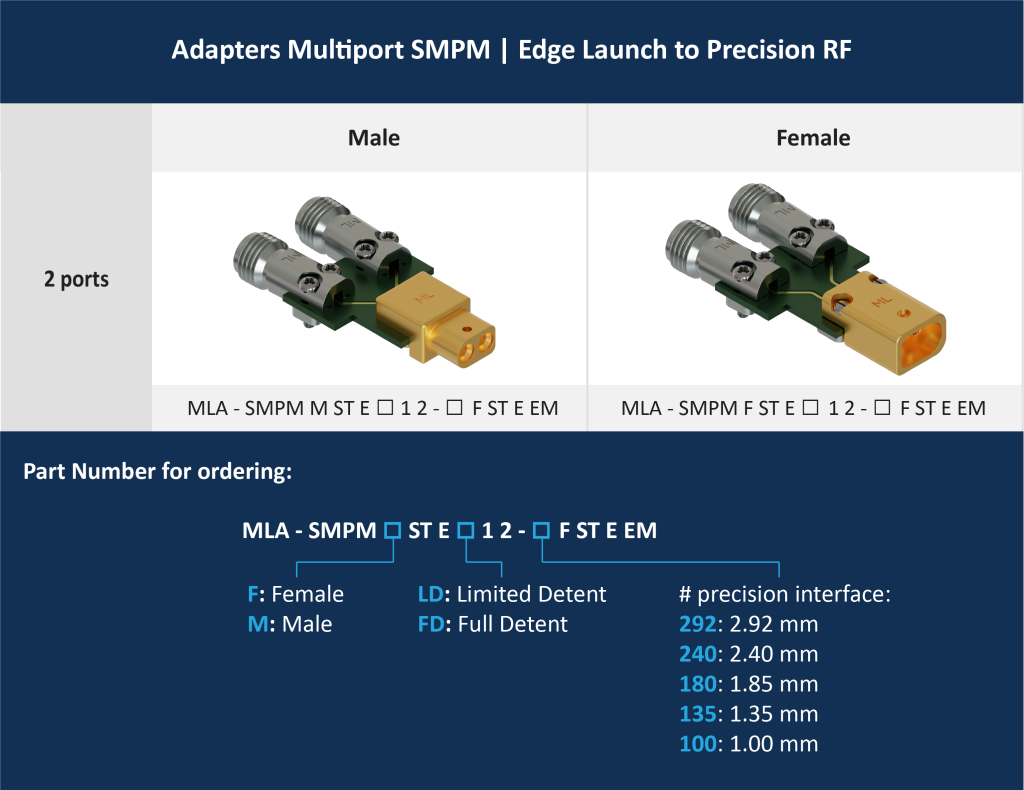

Adapters — Multiport SMPM PCB Connector to Precision RF
- Male to Precision RF — 2-port drawings, footprints, and STEP files
- Female to Precision RF — 2-port drawings, footprints, and STEP files
