Digital sampling oscilloscopes are essential tools for evaluating the performance of transmitters using jitter and eye diagram analysis.
Digital sampling oscilloscopes are essential tools for evaluating the performance of transmitters using jitter and eye diagram analysis. They are sometimes applied in unison with a BERT. The BERT generates the digital test pattern, while the oscilloscope analyzes the signal after it has run through the DUT.When specifying a scope, planning for extensibility is vital. The user’s test requirements change with the progress of the data communications market. MultiLane test equipment is designed to be robust and reliable, making it an investment to be used over the long term. Users should choose a model that is scalable and compatible with their extended product development roadmap.

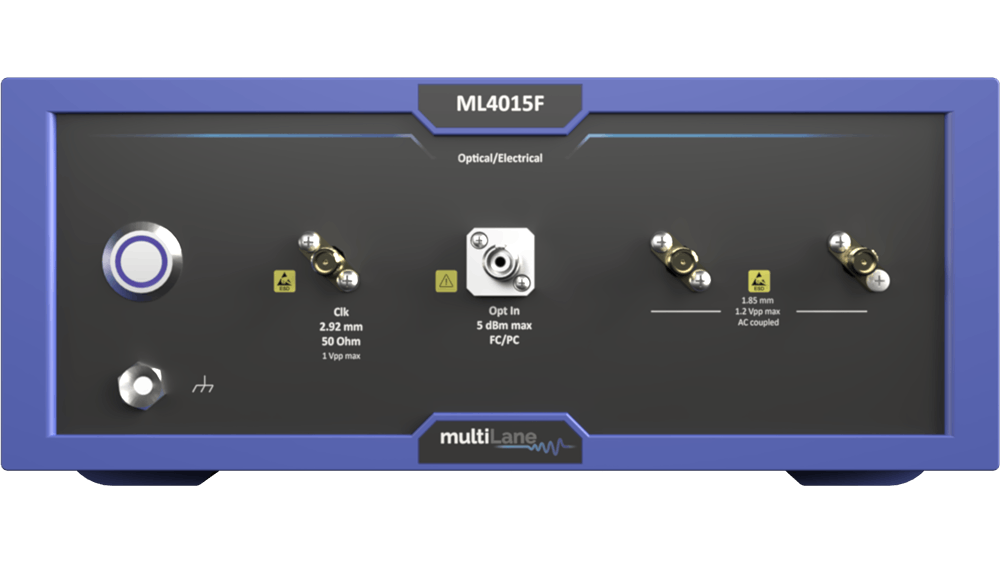

For instance, the ML4015F provides 42 GHz of optical bandwidth to support 100G Lambda optical technology with 53.125 GBaud PAM4 signaling.Key considerations include:
