SMPS (Subminiature Push-on Sub-miniature) solderless connectors for ultra-high-density board-to-board and cable-to-board applications up to 67 GHz.
SMPS Connector Family
The SMPS product line was developed for applications with strict design density limitations and where very high performance is a necessity.
- Solderless: Easy field installation & replacement for low cost, fast cycle time, and high repeatability
- High Density: Single row with 2 ports of SMPS at 2.5 mm pitch
- Versatile Mating Configurations: Board-to-Board or Cable-to-Board, Edge Launch, compatible with CPW & STL traces
- High Performance: DC–67 GHz (50Ω impedance)
- High customization potential: Twinax termination, multiple PCB thicknesses, custom port count, custom cable assemblies
Reach out to sales@multilaneinc.com with your application requirements for consultation.

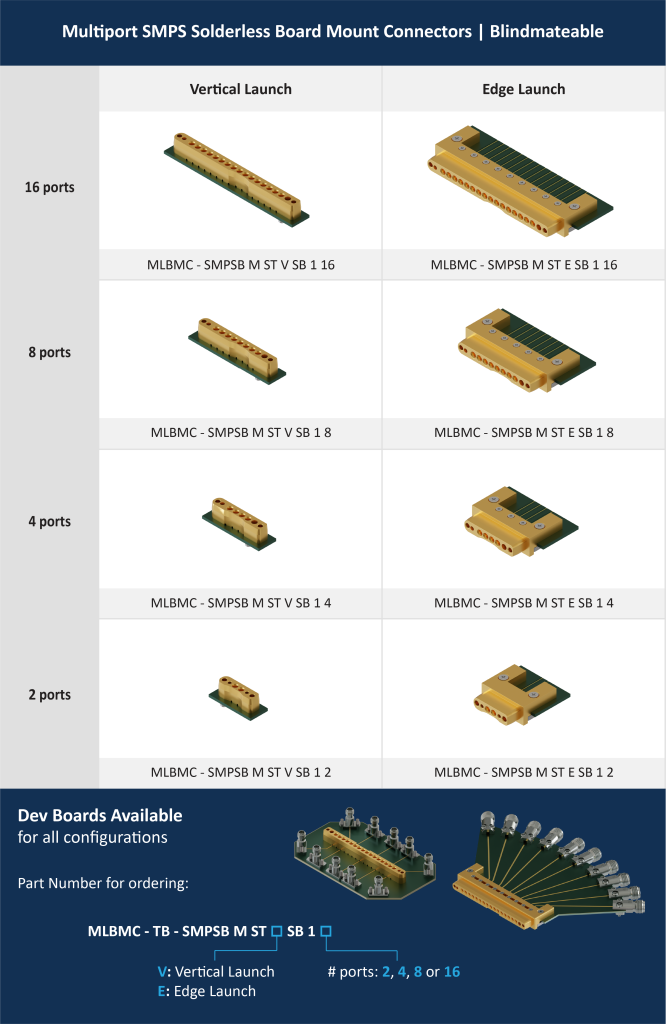

SMPS Edge Launch Connectors
- Male: Drawings & Footprints (2 ports), STEP Files (2 ports)
- Female: Drawings & Footprints (2 ports), STEP Files (2 ports)

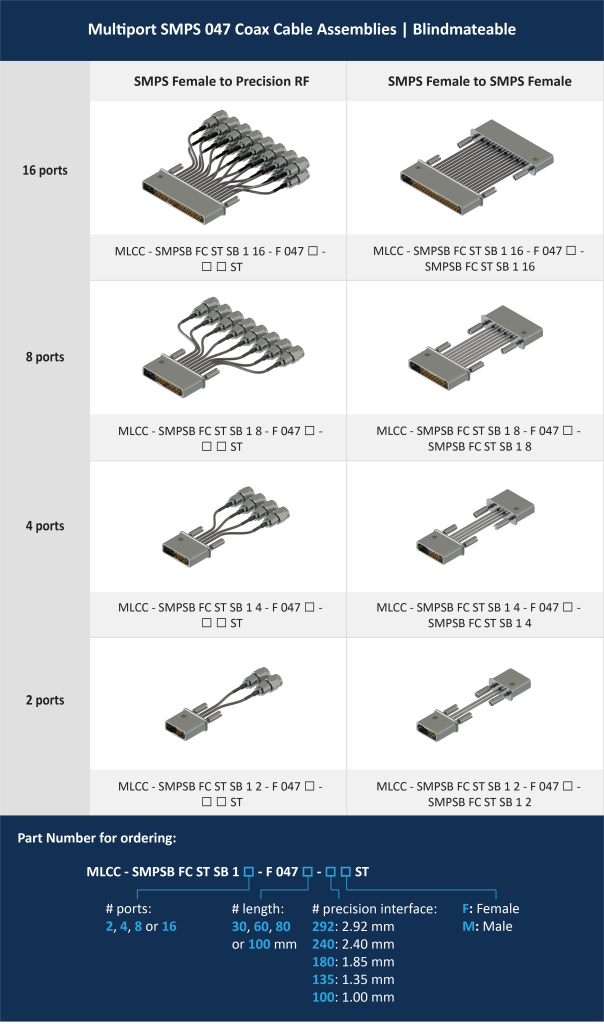

SMPS Twinax Cable Assemblies
- Female to Female
- Male to Female
- Male to Male
- Male to Precision RF
- Female to Precision RF
